VM5-04A

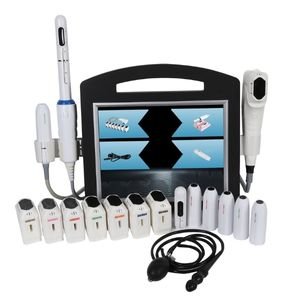

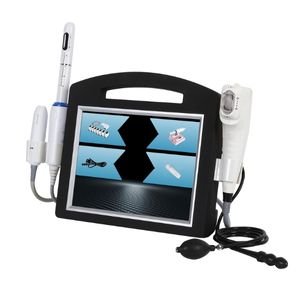

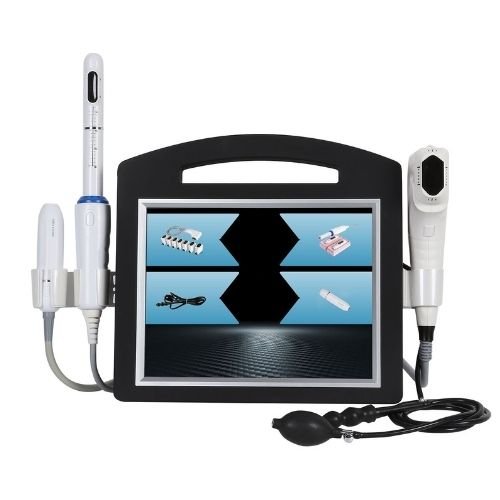

VM5-04A – 4-in-1 High-Intensity Focused Ultrasound System

VM5-01A is a next-generation 4D HIFU system that delivers precise, multi-depth energy to stimulate collagen remodeling from the SMAS layer up to the dermis. It features multiple cartridges for different treatment areas, allowing for non-invasive lifting and firming of the face, neck, jawline, and body. The multi-line scanning technology increases treatment speed and consistency, while the customizable energy settings ensure comfort and safety. Ideal for clinics seeking advanced anti-aging and contouring results with no downtime.

4-in-1 HIFU system for face, body, and intimate care
Includes Radar Carving, 4D HIFU, Vaginal Tightening, and Detection
Non-invasive lifting and contouring with SMAS targeting

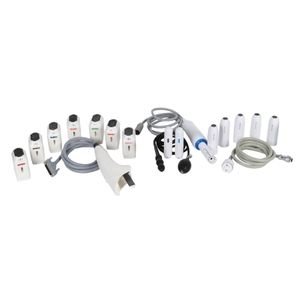

Multiple cartridges for customized treatments
Safe, effective feminine care with real-time monitoring
Touchscreen interface with intuitive operation

Product Specifications

Specification	Value
Model	VM5-04A
Input Voltage	AC110V - 220V
Output Power	10–200W
Output Frequency	1MHz–7MHz
Fuse	5A
Flight Case Size	31 × 44 × 50 cm
Base Size	73 × 51 × 17 cm
Net Weight	About 11.2 kg (excluding base)
Base Weight	About 10 kg
Treatment Cartridges	1.5mm / 3.0mm / 4.5mm / Radar / Vaginal / Detection

Explore the Power of 4-in-1 Precision

Intuitive Operation, Visible Results

Discover how the VM5-04A combines 4 advanced HIFU functions into one streamlined system. From facial lifting to intimate care, the device offers a smooth and intuitive user experience with clear treatment flow and real-time guidance.

the high frequency crystal head is formed by the crystal depth of physical properties, forming heating and solidification fields.

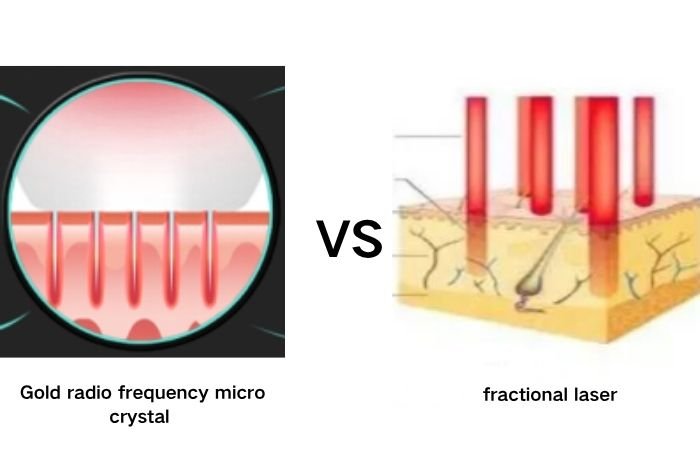

gold RF microcrystalline target depth and required energy can be finely regulated.
laser scattering, but it is difficult to reach the target depth (target 2mm), and the absorption of energy within the skin tissue can not be correctly predicted, often occur side effects such as hormonal disturbances.
heating through the epidermis, and a longer rest, and it is difficult to calm.
lattice laser a course of care time must be reached (3~5 times), while relative to laser RF-Needle is according to the circumstances may need (1~3 times) care。

Face Probe	Depth & Treatment Efficacy
1.5mm	Energy reaches directly to the dermis layer, making the fibrous tissue densely arranged to make the skin smooth and delicate.
3.0mm	Energy directly to the skin subcutaneous tissue accelerates the activity of cell, regenerating collagen to increase skin elasticity and firm skin.
4.5mm	Energy directly reaches the fascia layer to thermally coagulate the fascia layer, producing the effect of tightening and lifting the fascia layer to suspend the skin. This improves the skin from deep to shallow, supports subcutaneous structure, and restores elasticity to reduce wrinkles and lift facial skin.

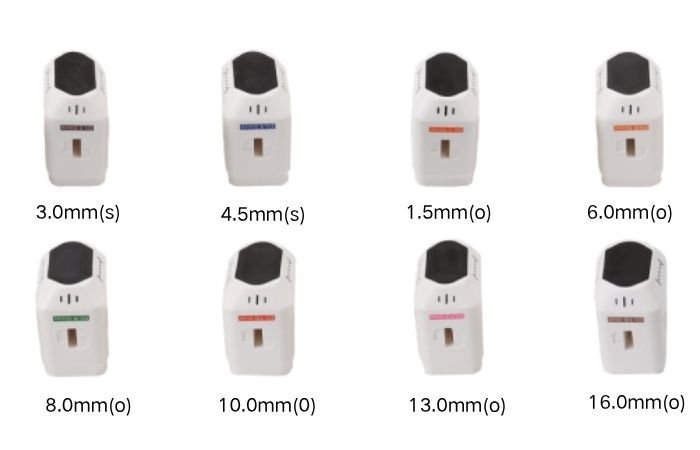

Treatment Depth & Energy Reference Table

Cartridge Depth	Treatment Area	Recommended Power (J)
1.5mm	Forehead / Chin / Jawline / Cheeks / Neck	0.4J
3.0mm	Forehead / Chin / Jawline / Cheeks	0.6J
4.5mm	Forehead / Chin / Jawline / Cheeks	0.6J
6.0mm	Chest	0.8J
8.0mm	Abdomen	1.0J
10.0mm	Arms / Legs	1.0J
13.0mm	Arms / Legs / Buttocks	1.2J
16.0mm	Arms / Legs / Buttocks	1.2J
