VM5-01A

VM5-01A – 4D Multi-Line HIFU Anti-Aging System

The VM5-01A uses advanced 4D multi-line focused ultrasound to lift, tighten, and contour the skin from the SMAS layer to the surface — all without surgery. It offers customizable energy, multiple depth cartridges, and instant results with no downtime.

Product Specifications

Specification Value
Model VM5-01A
Output Frequency 1MHz – 7MHz
Output Power 10W – 200W
Voltage Input AC 110V–220V, 50Hz/60Hz
Fuse 5A
Air Case Size 20 × 41 × 59 cm
Weight Approx. 11.5 kg (Base excluded)
Probe Depths 1.5mm, 3.0mm, 4.5mm, 6.0mm, 8.0mm, 10.0mm, 13.0mm, 16.0mm
Applicable Areas Face, Neck, Jawline, Abdomen, Legs, Buttocks
Recommended Energy 0.4J – 1.4J (depending on depth)

Explore the 4D HIFU Advantage

Step-by-Step, Smarter Treatment

VM5-01A is designed with ease of use in mind. From selecting cartridges to setting treatment depth and energy, the intuitive interface makes every step clear and efficient. Watch the demo to see how 4D multi-line HIFU delivers professional lifting and firming — without surgery or downtime.

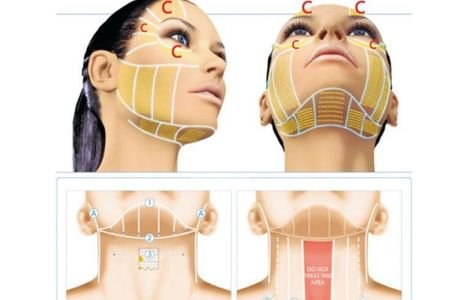

Treatment Area Recommended Depth (mm)
Forehead / Eye area 1.5mm
Cheeks / Neck / Jawline 3.0mm / 4.5mm
Abdomen / Arms / Back 6.0mm / 8.0mm
Thighs / Buttocks 10.0mm / 13.0mm / 16.0mm

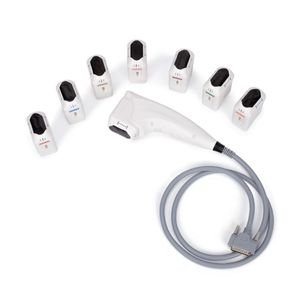

Probe Selection for Different Body Areas

Cartridge Depth Treatment Area Recommended Power (J)
1.5mm Forehead / Jawline / Cheeks / Chin 0.4J
3.0mm Jawline / Chin / Cheeks 0.6J
4.5mm Jawline / Chin / Cheeks 0.6J
6.0mm Chest 0.8J
8.0mm Abdomen 1.0J
10.0mm Arms / Legs 1.0J
13.0mm Arms / Legs 1.2J
16.0mm Arms / Legs 1.2J
