VM1-02B

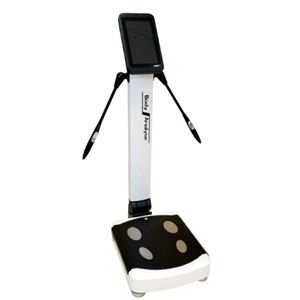

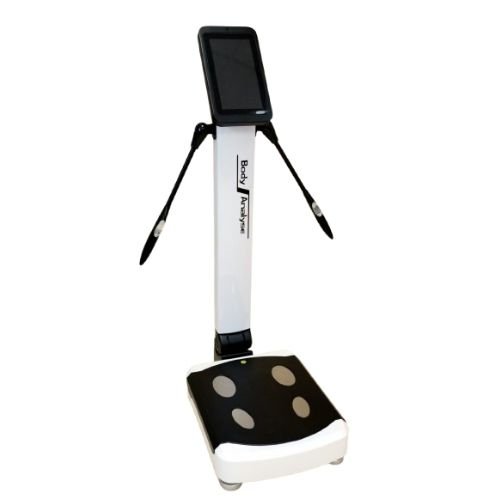

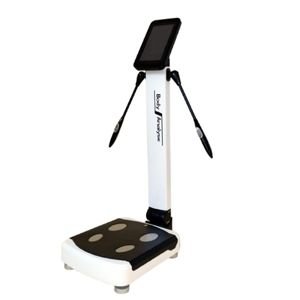

Body Composition Analyzer - VM1-02B

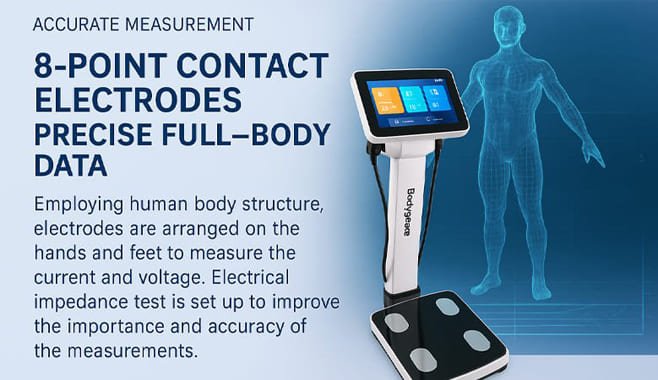

VM1-02B Smart Body Composition Analyzer is a high-precision diagnostic device designed for professional use in gyms, clinics, and wellness centers. Equipped with a 10.1″ full-color LCD touchscreen and multi-frequency BIA technology (20/50/100 KHz), it provides accurate, segmented measurements of body composition including water, protein, minerals, fat, muscle, visceral fat, BMI, and metabolic rate.
Users can log in or measure as visitors, with data stored, analyzed, and displayed through intuitive charts and QR code reports. The VM1-02B supports USB, Bluetooth, and WiFi connectivity, enabling easy report sharing or printing via an external inkjet printer. The entire process—from measurement to report generation—can be completed in under one minute.

Product Specifications

Model	VM1-02B
Test Current	≤ 300μA
Power Consumption	30VA
Power Supply	AC100–240V, 50/60Hz
Display	10.1" color LCD touchscreen
Data Output	5500W
Connectivity	USB 2.0, WiFi
Printer	External inkjet printer (standard: HP1212)
Device Dimensions	420 × 630 × 1130 mm
Packaging Size	450 × 650 × 1200 mm
Weight	Net: 30 kg / Gross: 32 kg

Easy to Use, Designed for Professionals

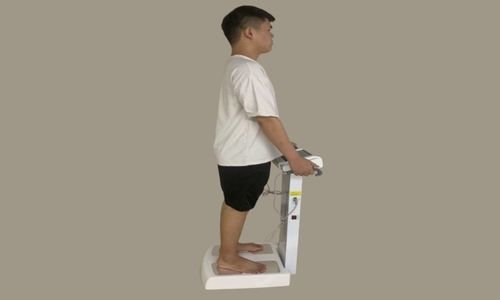

Body posture

Correct body posture is a standard standing posture witharms and feet apart, and to achieve accurate measurements,remove heavy clothing and items from the body.During the test, the arms should be naturally lowered to 15degrees with the body to avoid mutual contact between the bodyand legs.
The body needs to be relaxed during the test, do not tighten,move, speak loudly, etc.

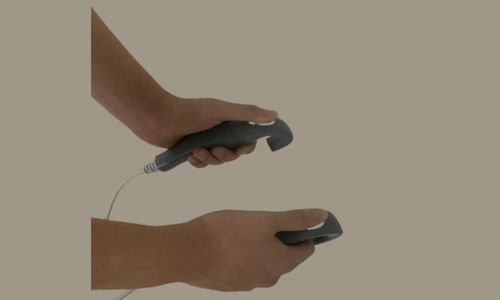

Correct posture for holding electrode bar

Hold the electrode by hand, hold the fingers evenly on themedial electrode, press the thumb on the electrode on the lateralside of the electrode, do not press the electrode piece with thefinger nail, and do not loosen it during the whole test. Remove theprotective film if it is affixed to the electrode.

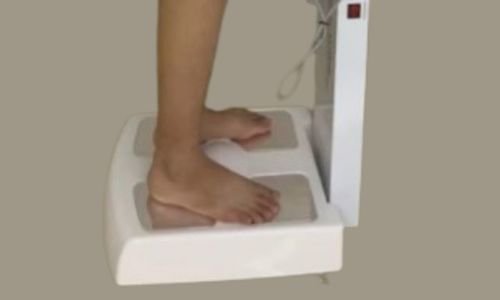

Correct foot pedal positioning

A. Step barefoot on the electrode piece.
B. Step your soles on the front electrode and your heels onthe back electrode
C.If the foot is too small, place the foot between the frontand back electrodes to ensure that both front and back ends of thefeet reach the electrdes at both ends.
D. Thick cocoon on the soles and heels or unclean objects onthe feet may affect normal testing, wipe them clean with a wipe.

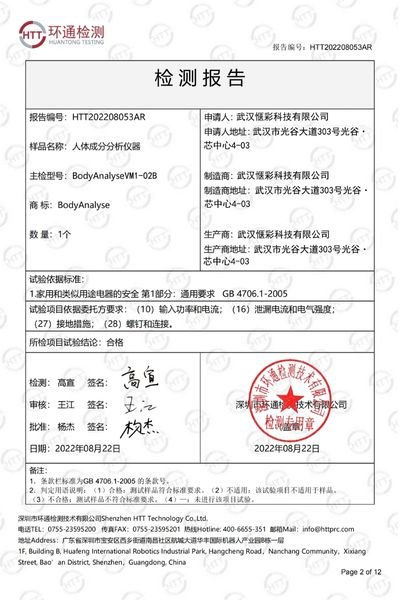

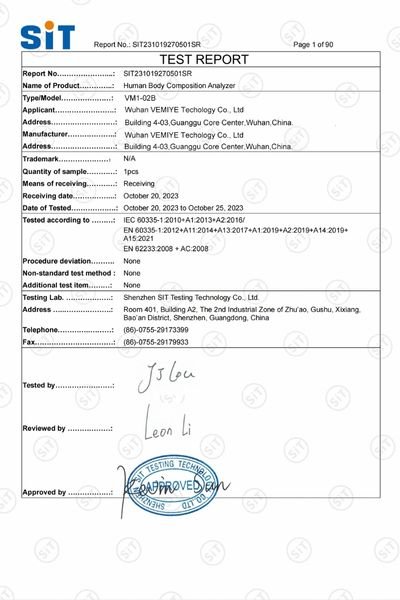

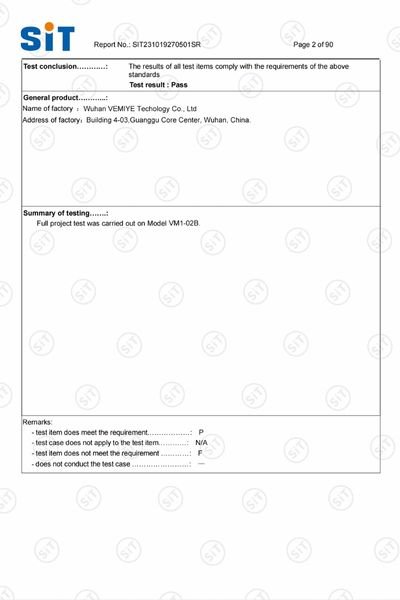

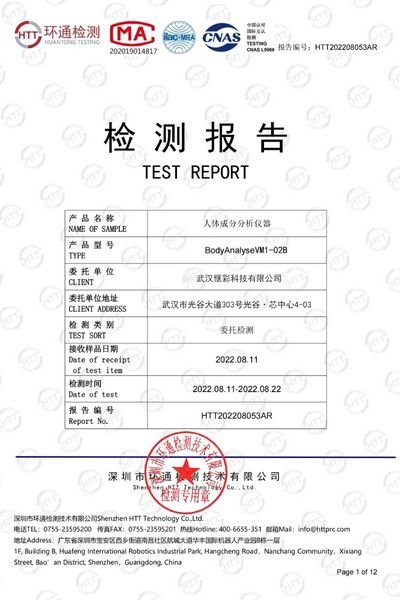

Certified for Quality and Compliance
