VM1-02A

Body Composition Analyzer - VM1-02A

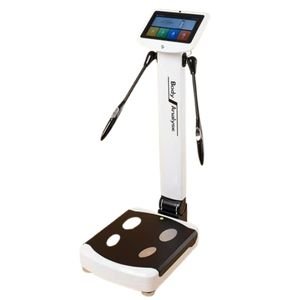

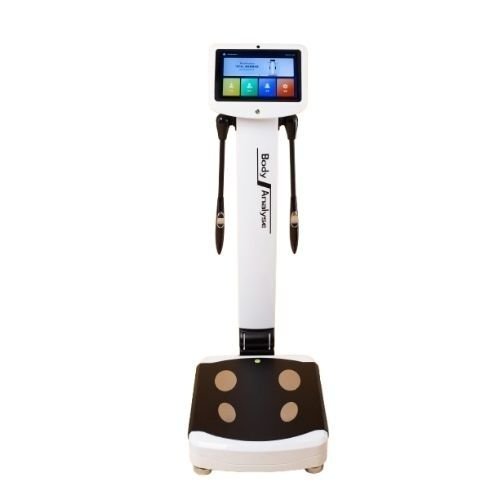

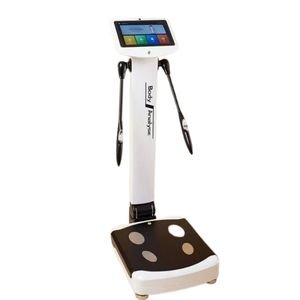

The VM1-02A Smart Body Analyzer is an advanced device designed for comprehensive body composition analysis. Featuring facial recognition login, it ensures secure and personalized access. Its quick screen-casting function allows seamless data projection, while reports can be directly read on a computer. Equipped with a high-precision chip and big data analysis capabilities, it delivers accurate results. The device boasts a touch-color screen for intuitive operation and supports real-time printing and multi-terminal data viewing. Utilizing 8-point contact electrodes, it precisely measures full-body data, powered by an intelligent body-sensing chip. Its foldable design enhances portability, making it suitable for various environments. With the ability to analyze 25 key body metrics, the BODY310 provides a full-scale assessment, catering to fitness centers, medical institutions, and personal health management.

Product Specifications

Model	VM1-02A
Display	10.1" color LCD touchscreen
Measurement Method	8-point contact electrode, multi-frequency BIA
Frequencies	20 / 50 / 100 KHz
Test Areas	Whole body + segmental (arms, legs, trunk)
Analysis Items	Body water, protein, fat, muscle, BMI, BMR, body age, etc.
Data Output	USB export (Excel), screen view
Connectivity	USB / WiFi / Bluetooth
Printer	External (HP1212 inkjet printer)
Weight Range	10–300 kg

Fast Simple Professional

Intuitive Operation Step by Step

The VM1-02A is engineered for intuitive, step-by-step operation. From device startup to body composition scanning, the process is simple, fast, and easy to follow. Users can quickly input basic information, stand on the platform, hold the handles, and complete a full test in less than one minute. The 10.1-inch touchscreen provides clear visual guidance, while the system automatically processes and displays the results in real time. No professional certification is required — making it ideal for gyms, clinics, wellness centers, and mobile operators.

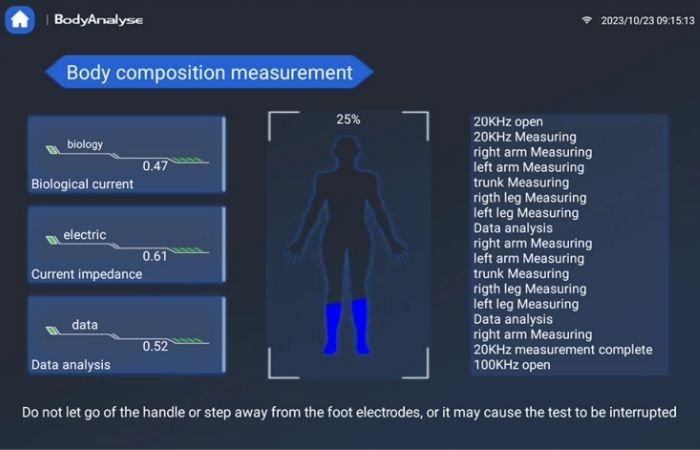

Impedancemeasuremen

During impedance measurement, place the heel on the heel electrode and hold the handle.
Position your thumb on the elliptical electrode, straighten your arms, and avoid touching the sides of your body.
Begin the impedance measurement after completing the posture guidance.
Do not move or speak during the measurement process.
Once the test is complete, the system will automatically jump to the report page.

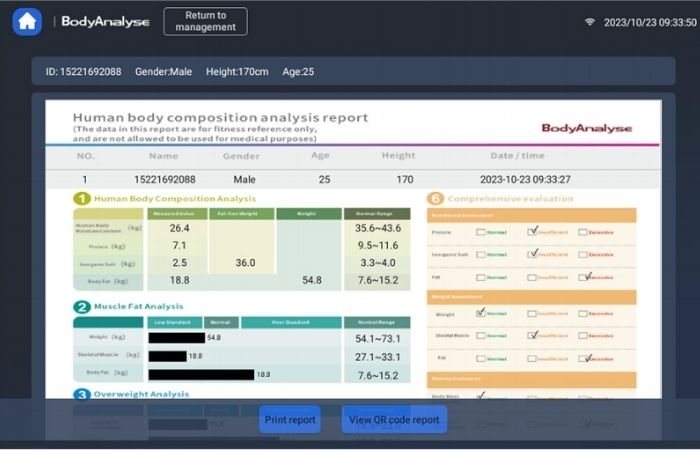

Analysis report

On the report page, you can slide the screen to view the full analysis. Click “Print Report” to print using an external inkjet printer. You can also view the QR code report—simply scan the code with your mobile device (phone, tablet, etc.) to access the report, save the image locally, or share the report link with others.

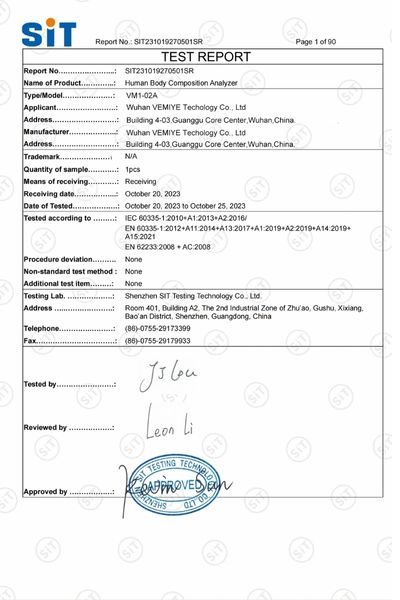

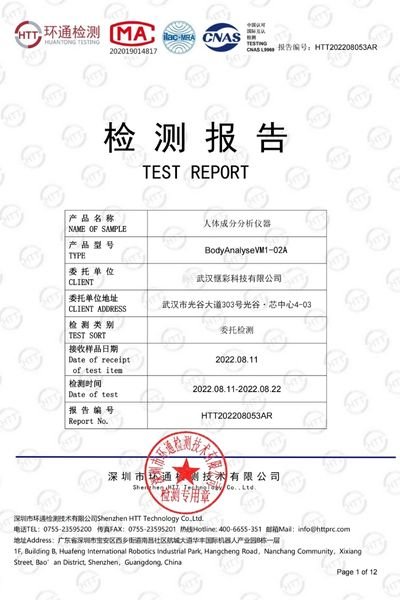

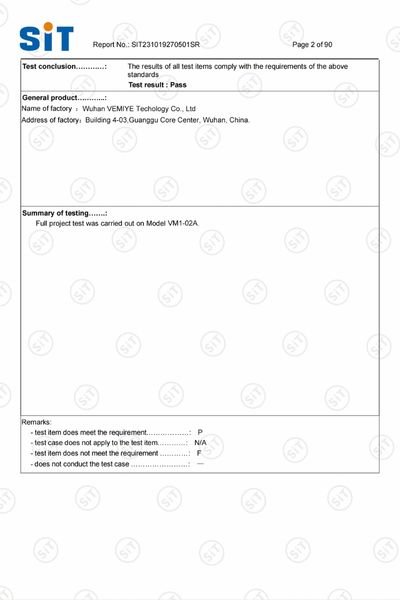

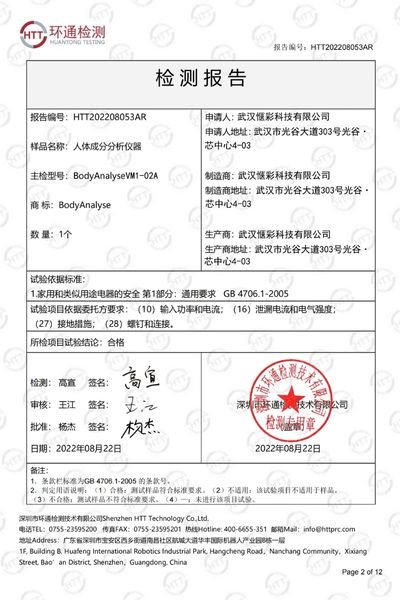

Certified for Quality and Compliance

Contact Us

Get in Touch with VEMIYE

Have a question about our products or services?
Our team is here to help with quotes, customization, or any technical support you need.
Reach out via WhatsApp, email, or phone — we’ll respond quickly.
