VM1-01A

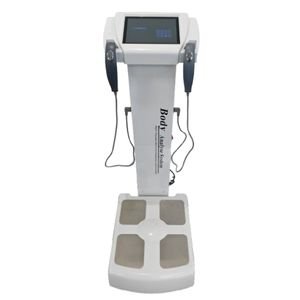

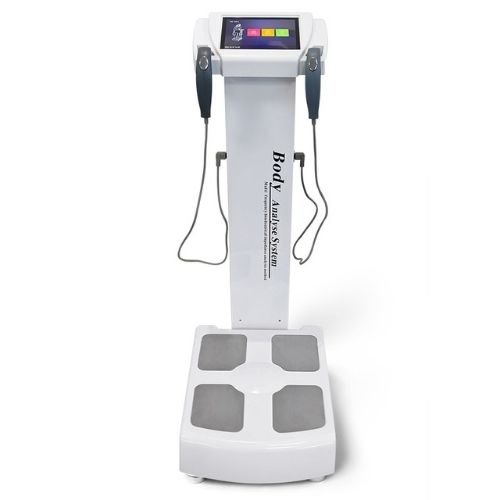

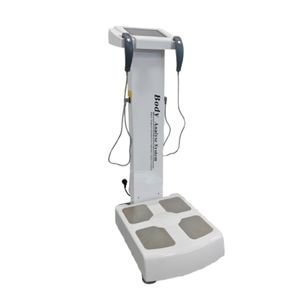

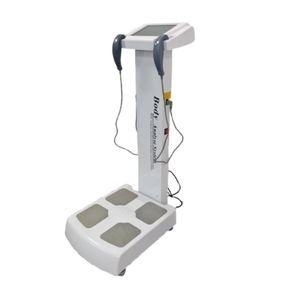

Body Composition Analyzer - VM1-01A

The VM1-01A Body Composition Analyzer applies the principle of multi-frequency bioelectrical impedance analysis and uses a touch-point electrode method to measure the bioimpedance of different parts of the human body. It detects various body composition elements and analyzes overall health status, including weight, protein, fat, water content, inorganic salts, and waist-to-hip ratio. This device provides scientific and effective data for weight control, fat reduction, body shaping, muscle training, nutritional balance, and disease diagnosis. It features body composition analysis, muscle and fat analysis, obesity analysis, and health assessment. It is widely applicable to hospitals, rehabilitation centers, body slimming and fitness centers, sports and fitness clubs, and other related fields.

Product Specifications

Model	VM1-01A
Measurement Method	8-point electrode, multi-frequency BIA
Frequencies	20 / 50 / 100 KHz
Test Areas	Whole body + 5 segments (L/R arms, L/R legs, trunk)
Analysis Items	Body water, protein, fat, BMI, muscle, visceral fat, BMR, etc.
Display	8" color LCD touchscreen
Data Output	On-screen only (no export)
Ports	USB 2.0, WiFi
Device Dimensions	420 × 630 × 1130 mm
Weight Range	10–300 kg

Easy to Use, Designed for Professionals

Body posture

Correct body posture is a standard standing posture witharms and feet apart, and to achieve accurate measurements,remove heavy clothing and items from the body.During the test, the arms should be naturally lowered to 15degrees with the body to avoid mutual contact between the bodyand legs.
The body needs to be relaxed during the test, do not tighten,move, speak loudly, etc.

Correct posture for holding electrode bar

Hold the electrode by hand, hold the fingers evenly on themedial electrode, press the thumb on the electrode on the lateralside of the electrode, do not press the electrode piece with thefinger nail, and do not loosen it during the whole test. Remove theprotective film if it is affixed to the electrode.

Correct foot pedal positioning

A. Step barefoot on the electrode piece.
B. Step your soles on the front electrode and your heels onthe back electrode
C.If the foot is too small, place the foot between the frontand back electrodes to ensure that both front and back ends of thefeet reach the electrdes at both ends.
D. Thick cocoon on the soles and heels or unclean objects onthe feet may affect normal testing, wipe them clean with a wipe.

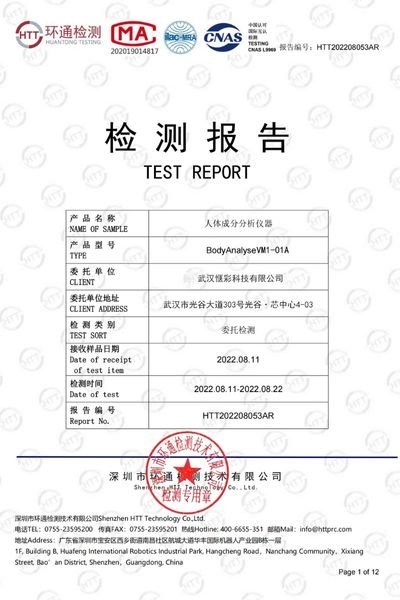

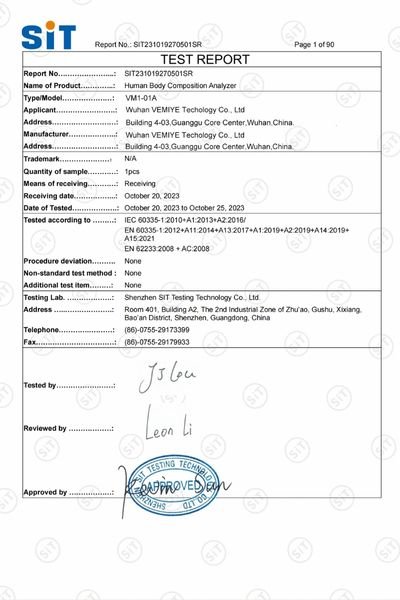

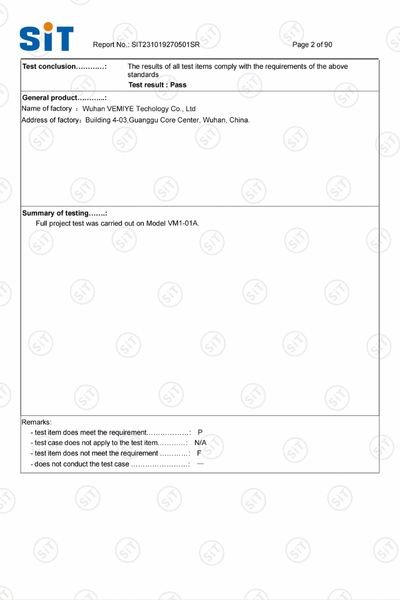

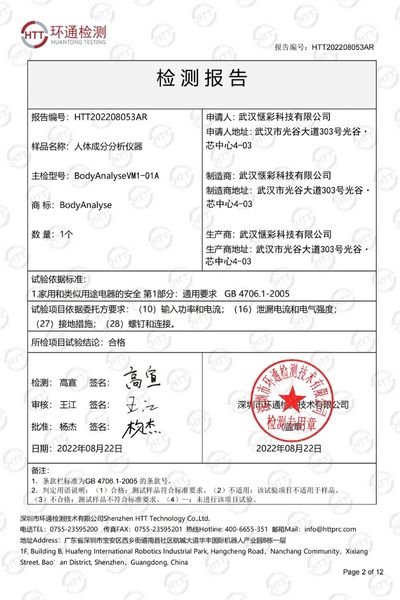

Certified for Quality and Compliance
